Guided Wave Testing (GWT) for large surfaces areas on pipelines


    Guided wave ultrasonic testing is an advanced ultrasonic testing technique used for its efficiency to test for deterioration on large volumes of material from a single test point. The term used in this method is Long Range Ultrasonic Testing (LRUT). Metal loss in pipeline or piping is a major issue for the oil and gas industry, especially at petrochemical plants and the time require to completely inspect the whole pipeline is one of the reason.

    Compared to conventional Ultrasonic Testing (UT), guided wave testing doesn’t require coupling fluid during inspection and uses a much lower frequency, at approximately 50kHz compared to conventional UT at 1-5MHz.

    LRUT capable of covering up to 350 metres of pipework depending on the condition, it can examine 100% of the pipeline wall’s volume without the need to move the transducer tools. Changes and anomalies in the pipeline reflect the guided wave to the transducer and measures any changes in the thickness of the pipe, both inside or outside.

    There isn’t any other UT method which can cover such a large surface-area inspection in one test, and in addition, LRUT can inspect pipes with diameters from 2” to 78”, with operating temperature  up to 240°C.

    With LRUT technology, the teams from Applus+ provide a comprehensive survey to detail the critical condition of the pipeline asset and report the findings to asset owners within the minimal time required.

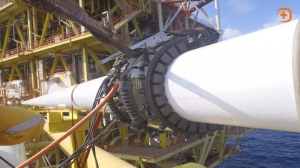

    Figure 1. LRUT Transducer Mounting

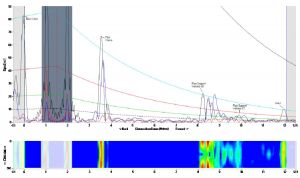

    Figure 2.Detailed Pipeline Scan


    By Hafizul Ali
